AmScope SM-4B-80S – Microscopio prismático zoom estéreo oculares WH10x aumento 7X-45X objetivo zoom 07X-45X luz de anillo LED de 80 bombillas

Descripción

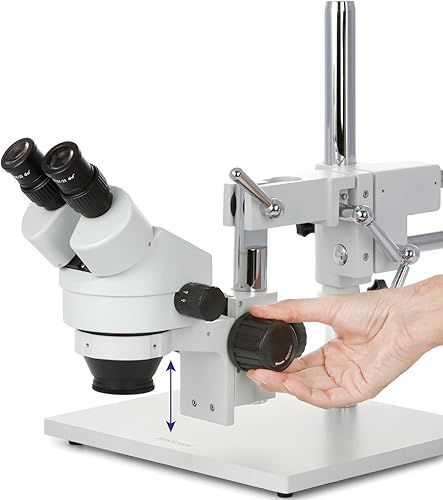

The AmScope SM-4B-80S professional stereo zoom microscope has a pair of 10x super-widefield high-eyepoint eyepieces, a 0.7x-4.5x zoom objective, and a double-arm boom stand. The microscope has an overall magnification range of 7x-45x. The binocular viewing head has an interpupillary range of 55 to 75mm, a 45-degree inclination to reduce eye and neck strain, and 360-degree rotation to enable sharing. The WH10x20mm super-widefield high-eyepoint eyepieces combine with the 0.7x-4.5x zoom objective to provide continuous zoom magnification and a longer working distance for inspecting large-scale specimens that require handling or repair. High-eyepoint eyepieces ease viewing for users who wear glasses, and dioptric adjustment accommodates individual eye-strength differences. A stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected. The removable 80-bulb LED ring light provides bright, cool light for working with temperature-sensitive or live specimens. The ring light provides shadow-free illumination, and a rheostat controls the amount of light emanating from the lamp. Power and adjustment controls are located on the light head. The light has a 100,000-hour life span and a 90V-265V variable power supply. The microscope has a double-arm boom stand that enables users to position the microscope head on all three axes (X, Y, and Z). Bilateral focus eases use for left- and right-handed users. The stand has 20″ double arms, and a 30″ overall length. The pillar is 17″ and the focus rack has a 3″ diameter. The solid cast-steel base is 2 x 8-1/4 x 10-1/4 inches (H x W x D, where H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back).SpecificationsHeadBinocularMagnification range7x-45xZoom objective power0.7x-4.5xEyepieces (DIN, 30mm)WH10x20mm high-eyepointZoom range6.5:1Field of view1-1/4″Optical working distanceUp to 4″Microscope standDouble-arm boom standHead movementX-, Y-, and Z-axesIllumination typeEpiscopic (reflected)Light source80-bulb LED ring lightPower90V-265VMicroscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA.What’s in the Box?AmScope SM-4B-80S stereo zoom microscope with double-arm boom standWH10x20mm eyepieces, 30mm, one pair0.7x-4.5x zoom objective80-bulb LED ring light (LED-80S)Focus rackEye guards, one pairInstructions
Características
Microscopio estéreo profesional con soporte de brazo tiene larga distancia de trabajo para permitir a los usuarios realizar trabajos o manipular objetos grandes, incluyendo placas de circuito y aparatos dentales. Cabezal de visión binocular con un par de oculares superanchos, distancia interpupilar ajustable, inclinación vertical fija de 45 grados para reducir la tensión de los ojos y el cuello, y capacidad de rotación de 360 grados para permitir el compartir. El objetivo de zoom de 0,7 x 4,5 x proporciona un aumento continuo del zoom y una longitud focal más larga para inspeccionar especímenes a gran escala La luz de anillo LED de 80 bombillas con control de reostato extraíble proporciona control de intensidad y luz brillante y fría para trabajar con especímenes sensibles a la temperatura o en vivo. El soporte de brazo doble tiene brazos de 20 pulgadas y pilar de 17 pulgadas para permitir a los usuarios colocar el cabezal del microscopio en tres ejes (X, Y y Z).
El número de Modelo (ItemModelNumber)
SM-4B-80S
Peso
3.25 Libras
Dimensiones
21.5 x 21.5 x 18.5 pulgadas
Fabricante es United Scope LLC.
Destacados
Microscopio estéreo profesional con soporte de brazo tiene larga distancia de trabajo para permitir a los usuarios realizar trabajos o manipular objetos grandes, incluyendo placas de circuito y aparatos dentales., Cabezal de visión binocular con un par de oculares superanchos, distancia interpupilar ajustable, inclinación vertical fija de 45 grados para reducir la tensión de los ojos y el cuello, y capacidad de rotación de 360 grados para permitir el compartir., El objetivo de zoom de 0,7 x 4,5 x proporciona un aumento continuo del zoom y una longitud focal más larga para inspeccionar especímenes a gran escala, La luz de anillo LED de 80 bombillas con control de reostato extraíble proporciona control de intensidad y luz brillante y fría para trabajar con especímenes sensibles a la temperatura o en vivo., El soporte de brazo doble tiene brazos de 20 pulgadas y pilar de 17 pulgadas para permitir a los usuarios colocar el cabezal del microscopio en tres ejes (X, Y y Z).
